Type CV

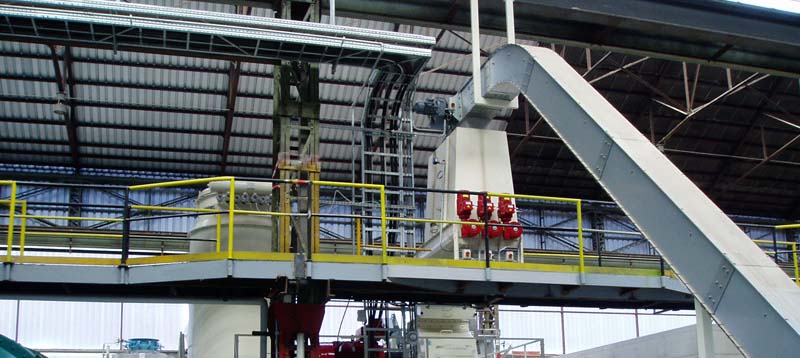

MONSUN™ Angle chain conveyors are specially designed for applications where the installation conditions require the installation of combined horizontal and vertical conveying devices for grain and biomass products

A solution that is often used as an integral part of conventional bulk handling systems - an element that increases the flexibility and efficiency of the plant’s operation

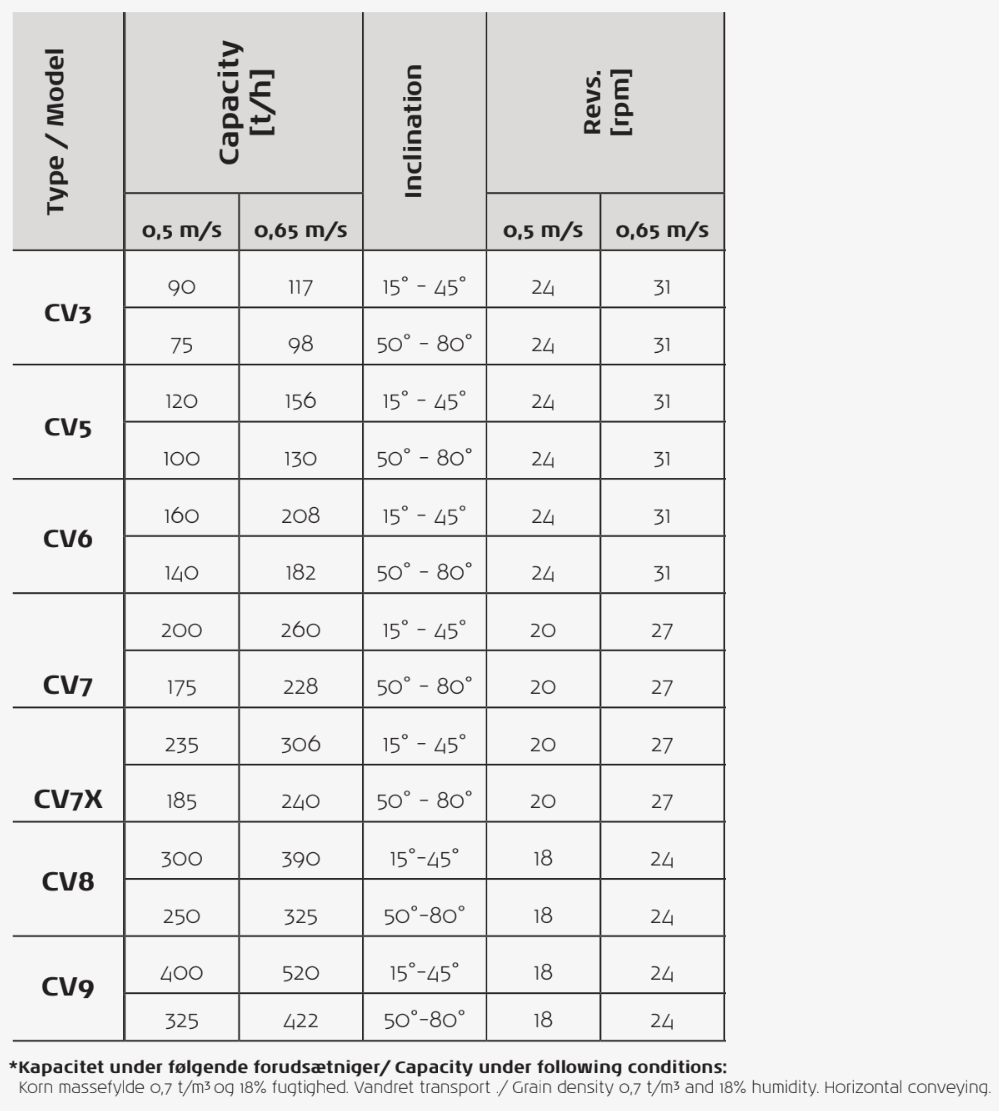

Type CV is available in two versions 15°-45° and 50°-80°. with horizontal and inclined conveying as well as up and downwards bends, applications and combinations are numerous.

Clean chain conveyors have been designed in a way that gives them good cleaning ability compared to traditional chain conveyors, meaning they are very applicable for conveying jobs with a low tolerance to the mixing of products.

The large carriers on the chain and the inner construction with intermediate bottom/profile makes inclined CVs insensitive to smooth-running products.
