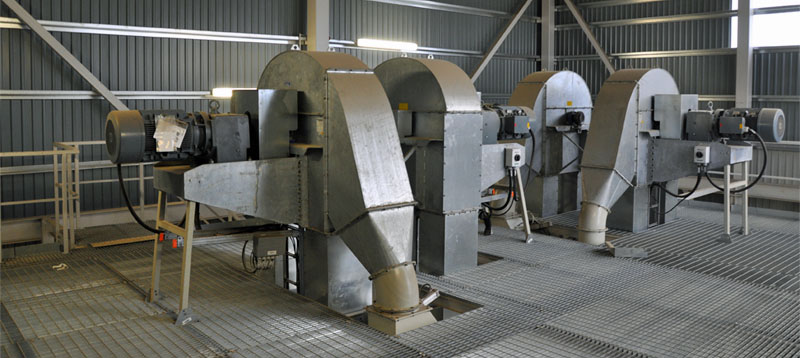

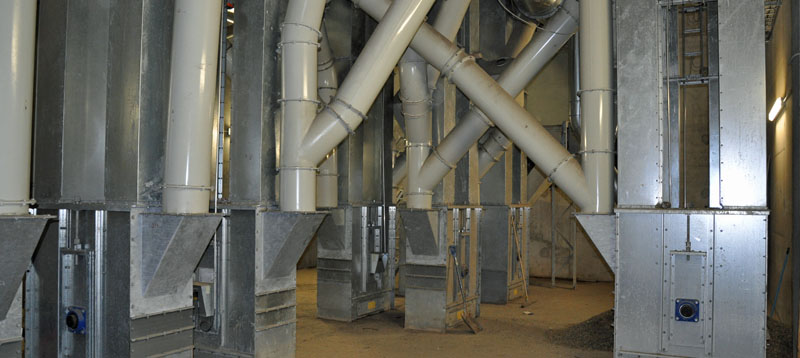

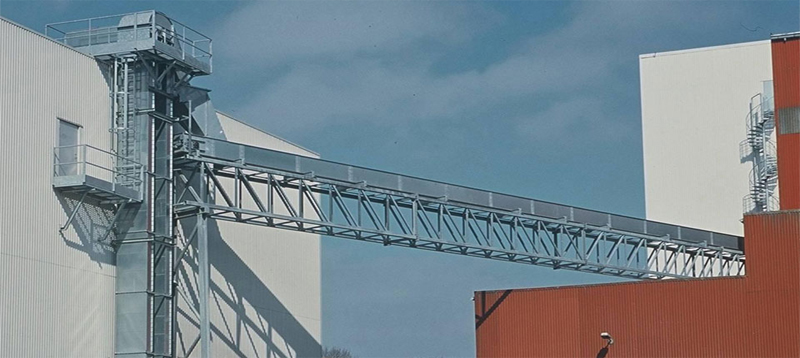

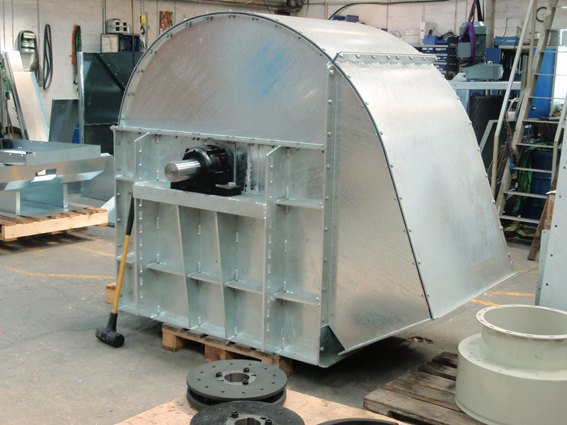

MONSUN bucket elevators are manufactured in a heavy-duty, industrial design which ensures efficient conveying of products within the grain and feed industry, breweries, malt houses as well as products/granules from other industries. Our bucket elevator feed mill equipment, is equipped with high efficiency buckets, heavy-duty industrial belt and self-cleaning bucket pulleys as standard.
The bucket elevator can also be supplied with additional equipment for monitoring the speed and misalignment of the bucket belt as well as reverse brake, central aspiration, spot filter, boot hopper, slides under the elevator foot, explosion relief and oil- and grease-resistant belt.
.JPG)
• Heavy duty execution

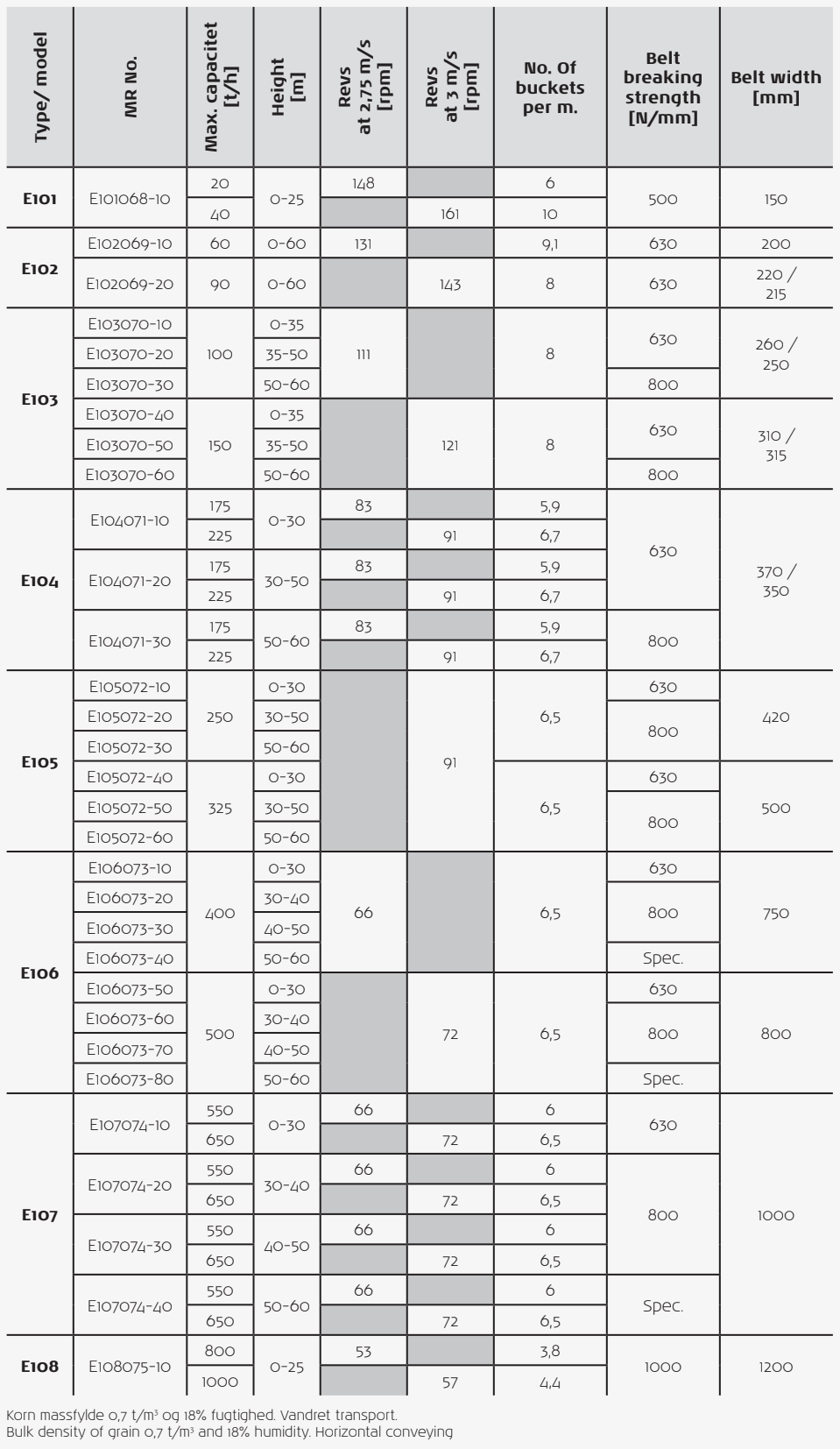

• Capacity of up to 1000 t/h
• Lifts up to 60 meters
• Standard execution (CE) in conformity with Machinery Directive 2006/42/EC and/or
• Atex Directive 94/9/EC (Zone 22 or 21)
• Safety control that comply with international standards
• Reliable transport and operation
• Customized solutions
• Equipped with high efficient buckets, strong industrial belt and inspection casing
• Speed sensor
• Elevator belts are supplied with oil resistant material and self-cleaning pulleys
• Gear motor and flexible coupling installed on flexible base
• Reverse brake, component of gear motor with high KW
• Manufactured in stainless steel or painted
• Explosion vent and flameless venting according to VDI 2263
• Explosion venting on head
• Explosion suppression system
• Scraper for pulleys
• Elevator head, inlet and outlet can be provided with RHINO- HYDE® wear liner
• Misalignment control
• Grain brake in outlet
• Overload sensor at elevator boot or head
• Service platform and ladder

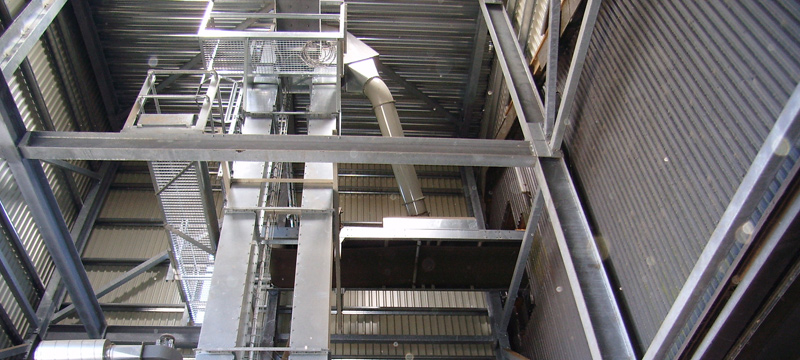

• Spot filter for dust aspiration
• Extra inlet hoppers
• External aspiration with suction point
• Rubber coated pulley
• Buckets in PEHD or stainless steel
